Best fit for
- Fast deployment of industrial camera inspection
- Self-contained HMI-based vision checkpoints
- Presence, orientation, label, and assembly checks
- Applications that need practical inspection without a full custom machine
System overview

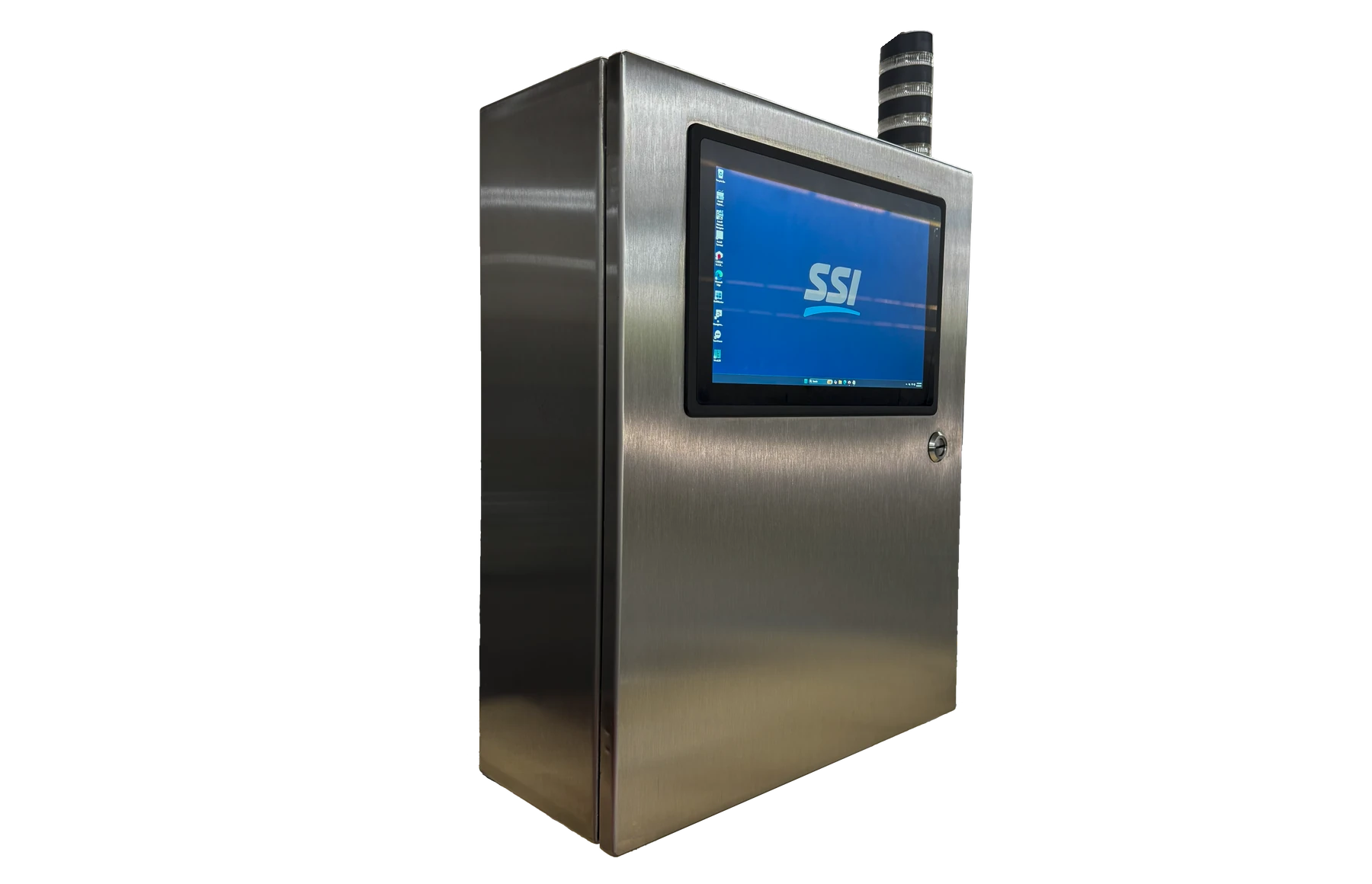

Easy Vision
Industrial camera and vision inspection platform
Self-contained IP-rated machine vision platform for fast deployment of industrial cameras and inspection systems
Easy Vision gives production teams a practical way to add presence checks, orientation checks, label inspection, assembly verification, and AI-assisted defect detection without starting from a full custom machine build.
Camera, lighting, communication, and inspection tools are scoped around the application, product presentation, and acceptance criteria.
How SSI delivers the work
From mounted vision box to reviewed inspection results
A practical workflow keeps scope, integration, acceptance criteria, and support visible before the system is released to production.
-
Detect
Mount the vision platform
Install the Easy Vision control box and position the camera at the process checkpoint.
-
Verify
Connect camera and network
Add the scoped power, camera, network, and lighting connections required for the application.
-
Decide
Configure inspection parameters
Set inspection tools, HMI screens, calibration steps, and acceptance rules around the product.
-
Reject / log
Control failed checks
Failed inspection results can drive HMI prompts, alarms, line signals, quality holds, or review steps as scoped.
-
Report
Review results and records
Run product through the checkpoint and review image display, inspection results, exports, and support needs.
Typical scope
Typical scope
Use these details to frame the inspection need, camera setup, and integration requirements before sending samples or line photos.
- Line speed
- Scoped to inspection time, trigger method, product presentation, camera exposure, and operator review needs.
- Product spacing
- Works with manual stations, fixtured checks, or line-side checkpoints when the camera has a stable target view.
- Inspection type
- Presence/absence, orientation, label inspection, assembly verification, and AI-assisted defect checks when justified.
- Reject method
- HMI pass/fail, alarm, stop/go signal, quality hold, operator review, or downstream action as scoped.
- Data outputs
- Real-time HMI results, image display, inspection status, exports, and records can be scoped around the workflow.
- PLC/MES integration
- EtherNet/IP communication, remote support, network setup, PLC handshakes, and data handoffs are application-dependent.
- What SSI needs to quote
- Inspection goal, part photos, camera location, product presentation, network needs, acceptance criteria, and support expectations.
Buyer fit
Fit, scope, and quote requirements
Use this section to decide whether Easy Vision is the right fast-deployment vision platform before a full custom machine build is justified.
Common applications
- Presence and absence checks
- Part orientation verification
- Label inspection and assembly confirmation
- AI-assisted defect detection when justified
What it verifies
- Configured camera inspection results
- Operator-facing pass/fail status on the HMI
- Part, label, or assembly conditions defined during scoping
- Detection rules and image review workflows as scoped
Integration requirements
- Camera location, mounting position, and lighting needs
- Power, network, and EtherNet/IP communication
- HMI setup, calibration, and operator workflow
- Remote support path and line-side access
What SSI needs to quote
- Inspection goal and acceptance criteria
- Part photos, sample images, or bad-part examples
- Camera location and product presentation
- Network, controls, and support requirements
Next step
Ready to scope this system?
Send samples, drawings, target line speed, spacing, reject handling, and data requirements so SSI can confirm fit and quote the right Easy Vision configuration.
- Samples, drawings, or product photos
- Line speed, spacing, and orientation
- Reject handling, logging, and integration needs

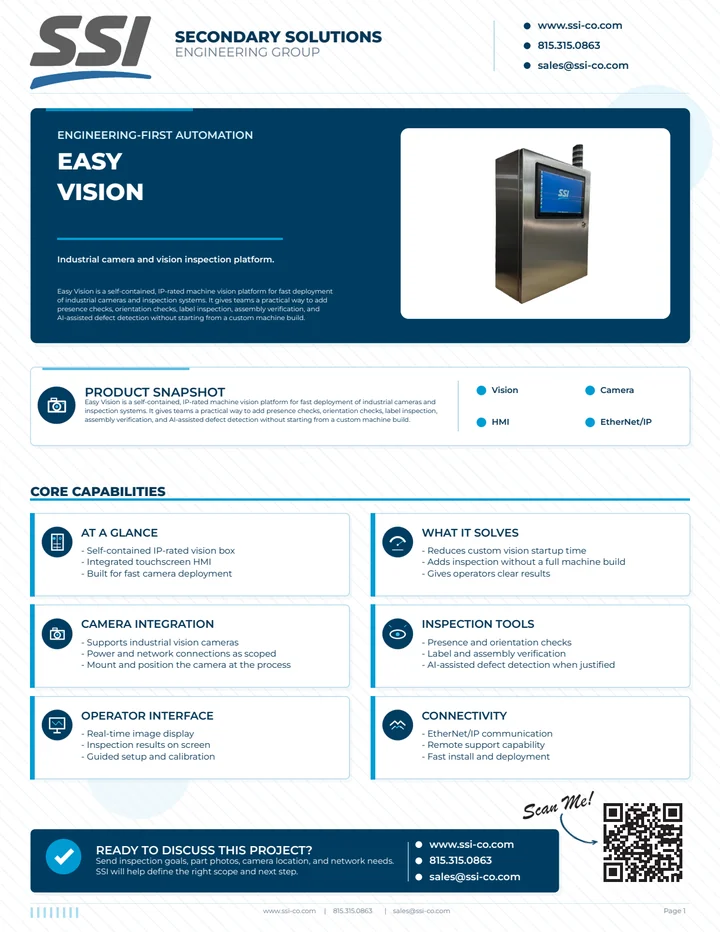

Download flyer

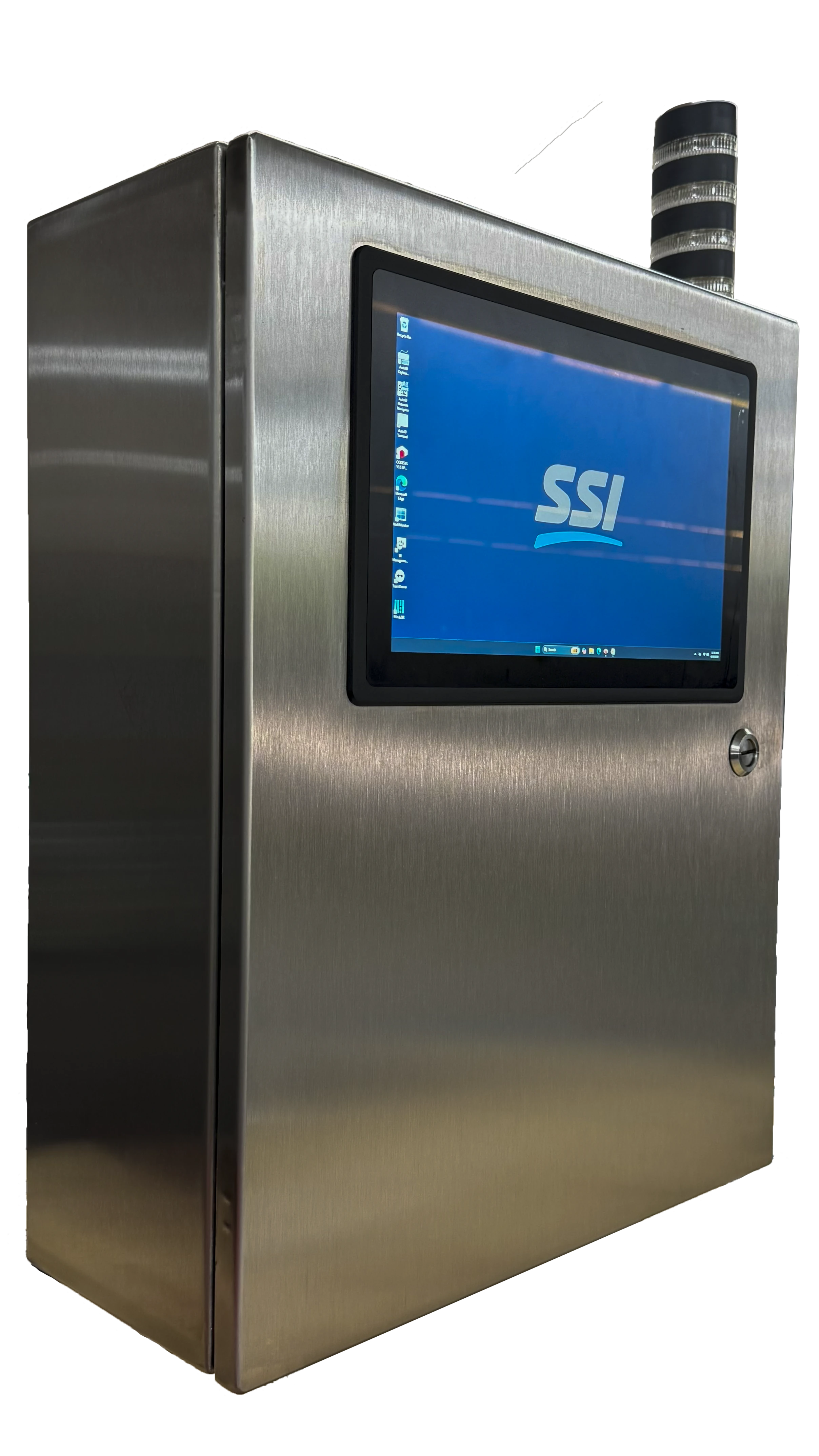

Easy Vision gallery
