Multi-side inspection platform

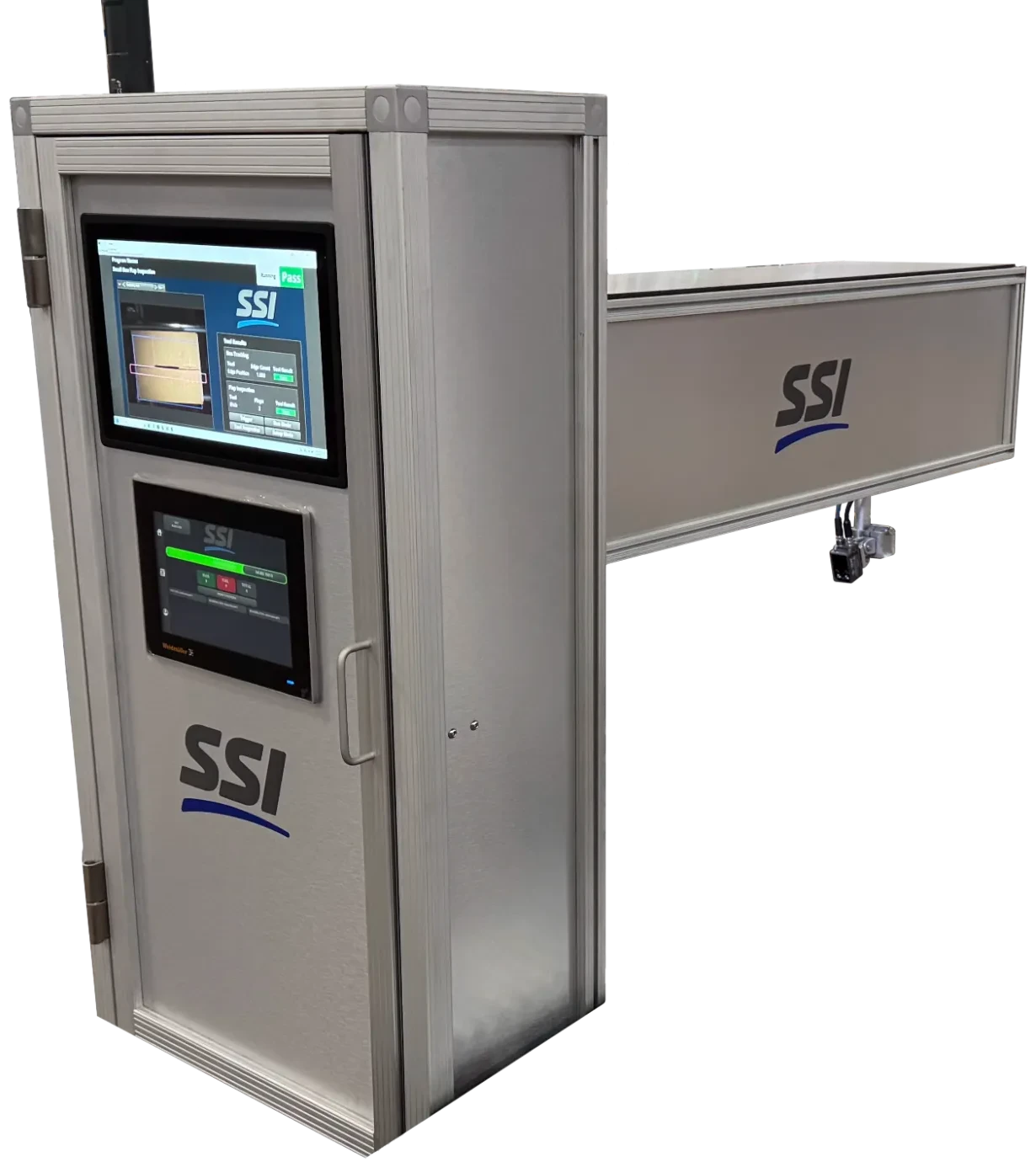

The SSI Vision Tunnel delivers multi-side visibility in continuous motion to reduce missed defects and unread codes versus single-view inspection. Its modular architecture scales to product geometry, line speed, and inspection criteria.

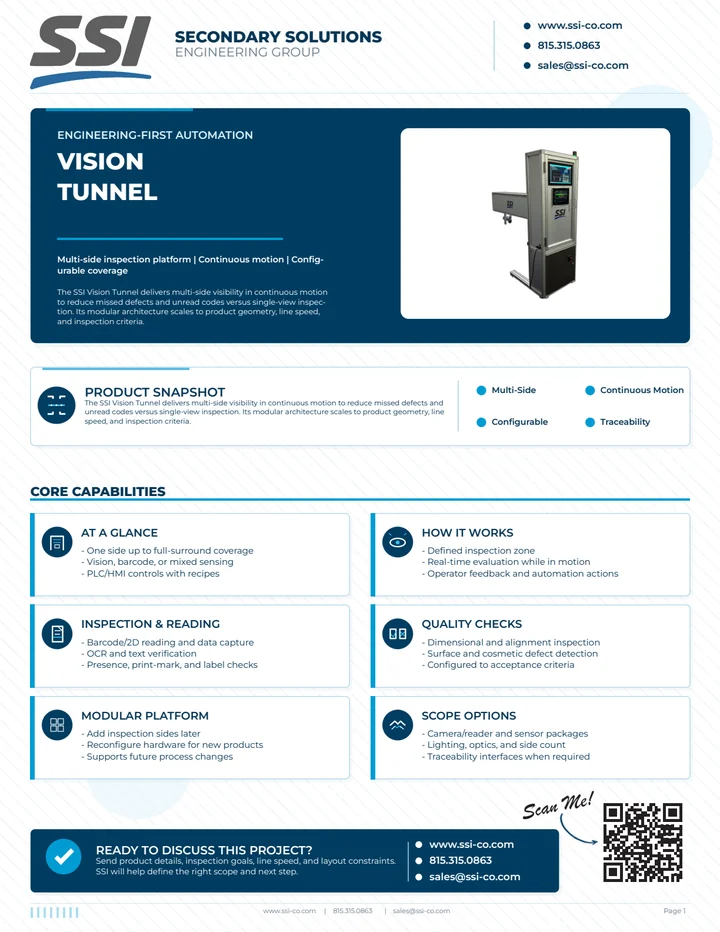

Request a Quote Download flyer

Detect
Trigger the tunnel zone

Use a photoeye, encoder, or product-present signal as each item enters the controlled inspection envelope.
Verify
Inspect required faces

Cameras, lighting, and readers are positioned to check the selected sides, codes, labels, features, or measurements.
Decide
Apply pass/fail rules

Configured criteria turn the inspection into a clear pass, fail, hold, or downstream quality decision.
Reject / log
Control exceptions

Reject stations, line handshakes, alarms, or quality holds are triggered when a product misses the configured criteria.
Report
Store usable inspection records

Pass/fail events, timestamps, exports, images, reason codes, database records, or MES handoffs are added as scoped.

Line speed: Scoped to line speed, camera count, feature complexity, and presentation stability.
Product spacing: Continuous inline flow works best with controlled orientation and spacing.
Inspection type: 2D vision, ID reading, and selected measurement checks; 3D or AI options only when validated for the application.
Reject method: Reject station, downstream handshake, confirmation sensor, or quality hold action as scoped.
Data outputs: Pass/fail timestamps and CSV export are typical; images, reason codes, and database records are scope-dependent.
PLC/MES integration: PLC I/O, fieldbus, reject stations, database, MES, and dashboards are added as required.
What SSI needs to quote: Product photos, drawings or samples, target line speed, spacing, orientation, pass/fail criteria, defect examples, reject, logging, image storage, and export needs.

Buyer fit

Fit, scope, and quote requirements

Use this section to decide whether a continuous-motion multi-side tunnel is a fit before scoping cameras, lighting, reject handling, and data capture.

Best fit for

Continuous-motion production lines
Products that need more than one visible inspection side
Operations that need pass/fail control before downstream work
Programs with stable product spacing and presentation

Common applications

Label, barcode, QR, date, and lot verification
Cap, seal, presence, and alignment checks
Package and assembly defect screening
Dimensional or feature checks when the image geometry supports it

What it verifies

Configured visible features from the selected inspection sides
Readable codes and text where contrast and presentation allow
Defined acceptance criteria with pass/fail outputs
Reject confirmation or image capture when included in scope

Integration requirements

Conveyor space for the tunnel and inspection zone
Trigger, encoder, or PLC signals when timing is required
Reject device and downstream handshakes as scoped
Lighting, guarding, and environment constraints reviewed up front

What SSI needs to quote

Product photos, drawings, or samples
Target line speed, spacing, and orientation
Pass/fail criteria and defect examples
Reject, logging, image storage, and data export needs

Next step

Ready to scope this system?

Send samples, drawings, target line speed, spacing, reject handling, and data requirements so SSI can confirm fit and quote the right Vision Tunnel configuration.
