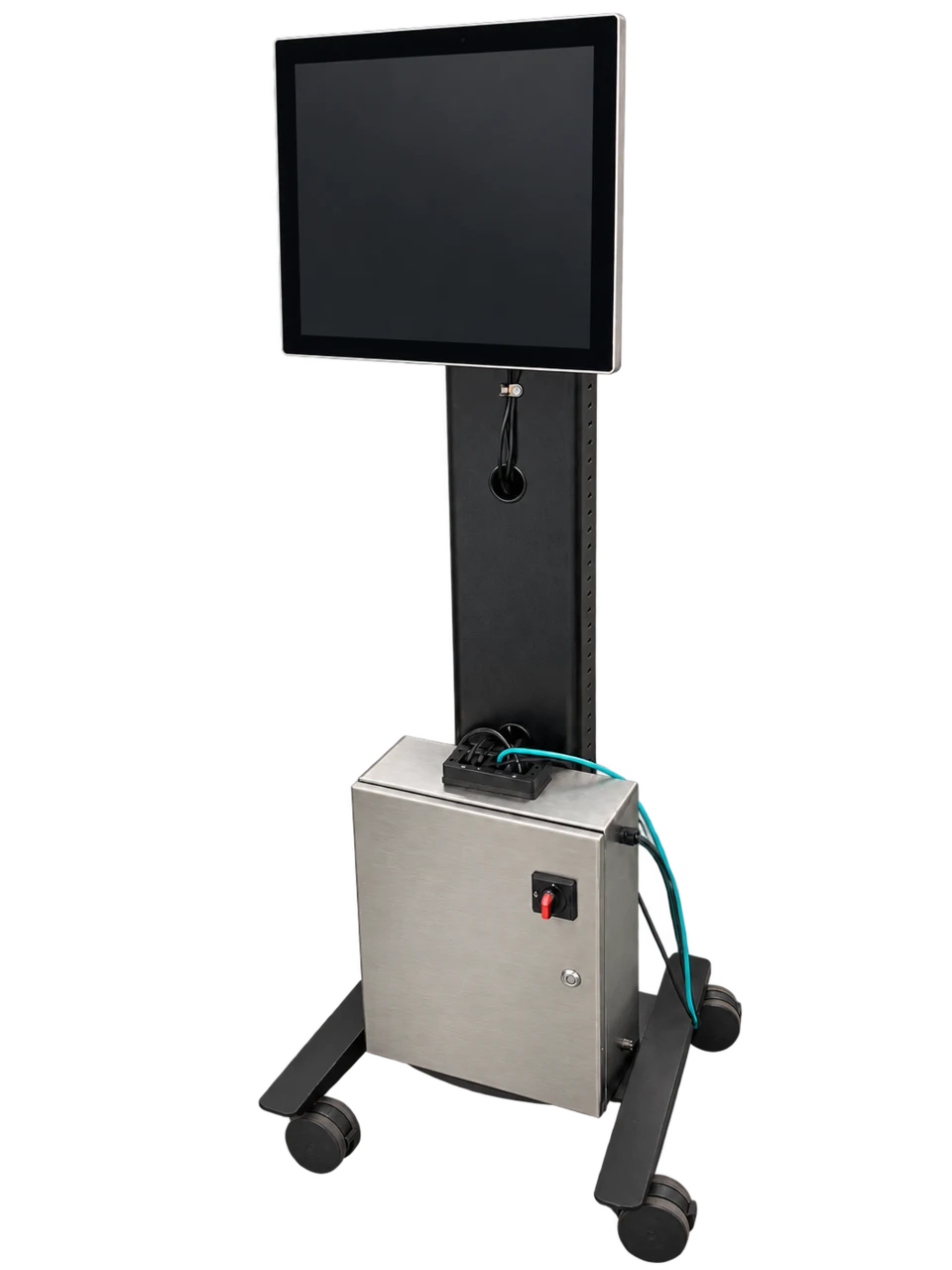

J5 Stand is designed as a lower-cost alternative to SSI's Vision Tower and Vision Tunnel. Configure it as either a camera inspection station or a barcode reading station for your application.
J5 can provide the same types of inspection or code-verification capabilities when the camera or reader, lighting, software, part presentation, and integration are matched to the job. SSI confirms the required coverage, throughput, and acceptance criteria during application review.
The J5 configuration defines how each item is presented, inspected or read, evaluated, and reported. Outputs and downstream actions are selected for the application.
Define the view, working distance, lighting, and trigger so the selected camera or barcode reader receives a repeatable presentation.
A camera configuration checks the selected visible features. A barcode configuration reads the required code and applies the configured verification rules.
Application software evaluates the result against the agreed criteria and supplies the required pass, fail, or no-read status.
Operator feedback, an alarm, a hold signal, or a reject request can be included when required. Physical reject equipment and its controls are scoped separately.
Define any required counts, timestamps, images, CSV exports, database records, or MES handoffs as part of the software and integration scope.
Confirm the inspection or barcode task, equipment selection, performance requirements, and integration before finalizing the J5 configuration.
Start with the inspection or code-reading requirement. J5 offers a lower-cost platform choice when the required views, presentation, and integration fit the application.
Send samples, drawings, target line speed, spacing, reject handling, and data requirements so SSI can confirm fit and quote the right J5 Stand configuration.

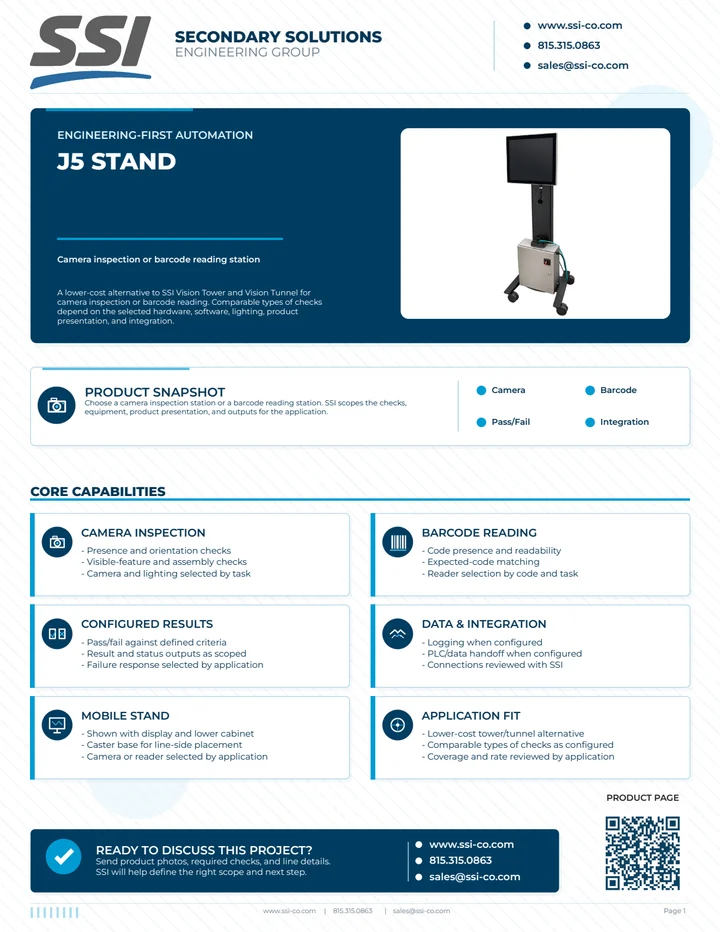

Download flyer
